Alu Wire

What is aluminum welding wire

Welding wire is a wire welding material used as filler metal or at the same time as conductive. Aluminum welding wire refers to a welding wire made of aluminum alloy, which has good alloy characteristics. 5183 and 5356 aluminum wire are often used for marine aluminum sheet welding.

5183 aluminum welding wire is an aluminum-magnesium welding wire with a magnesium content of nearly 5% and a higher manganese content. It is used for welding with high magnesium content and requiring strong tensile strength (for example, when the tensile strength is 276MPa or higher).

5356 aluminum welding wire is an aluminum-magnesium welding wire containing more than 5% magnesium and higher manganese content, with high height, good corrosion resistance and hot crack resistance. The weld seam is white after anodizing, which provides a good color matching for the welded joint. This series of aluminum welding wires are used as filler consumables for argon arc welding of aluminum alloys with high magnesium content.

Solid core wire specification

Alloy

5183

5356

Grade

WC

WB

Wire diameter

0.8 - 1.0 - 1.2 - 1.6 mm

Wire spool size

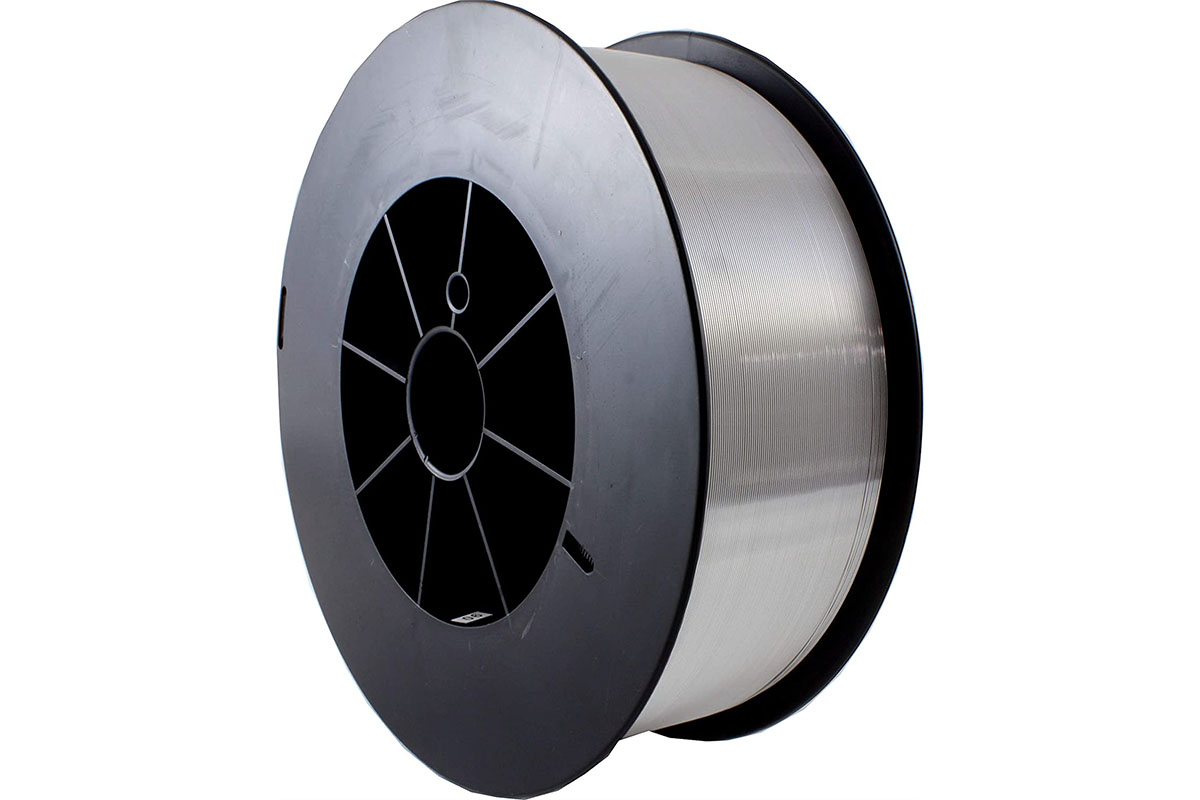

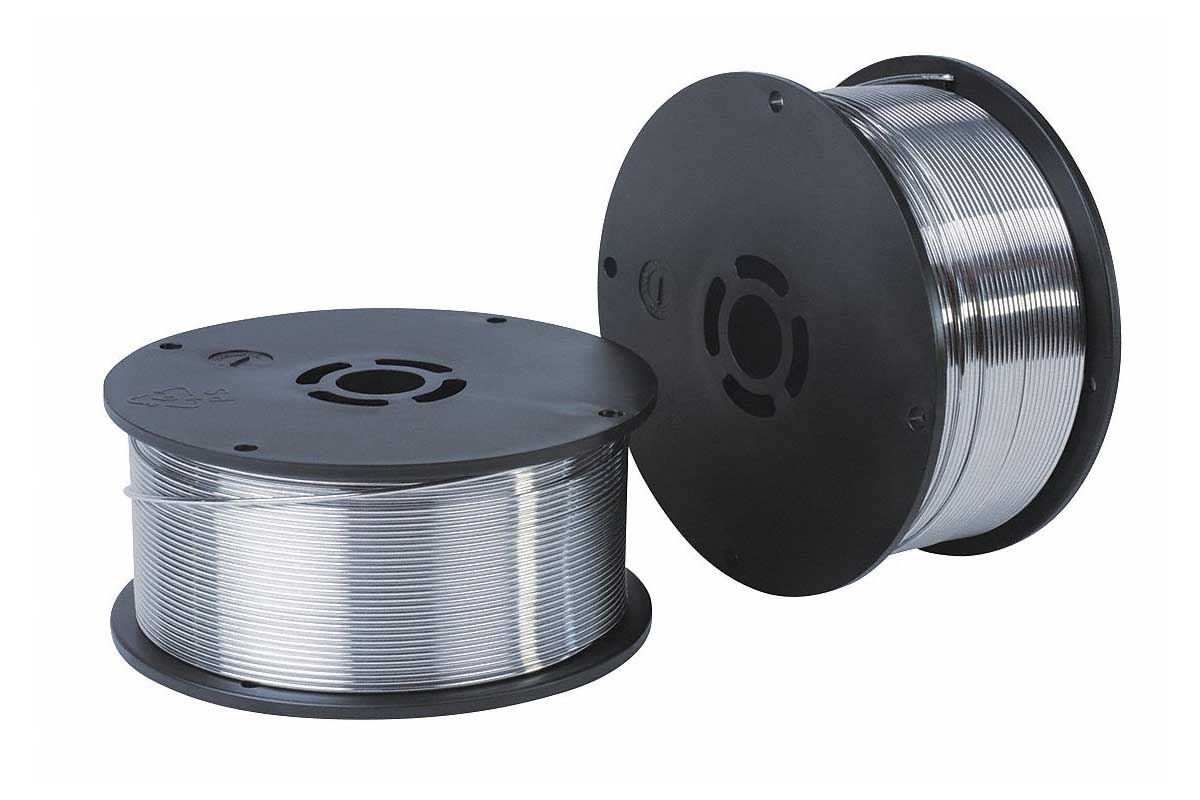

D300(9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Packaging

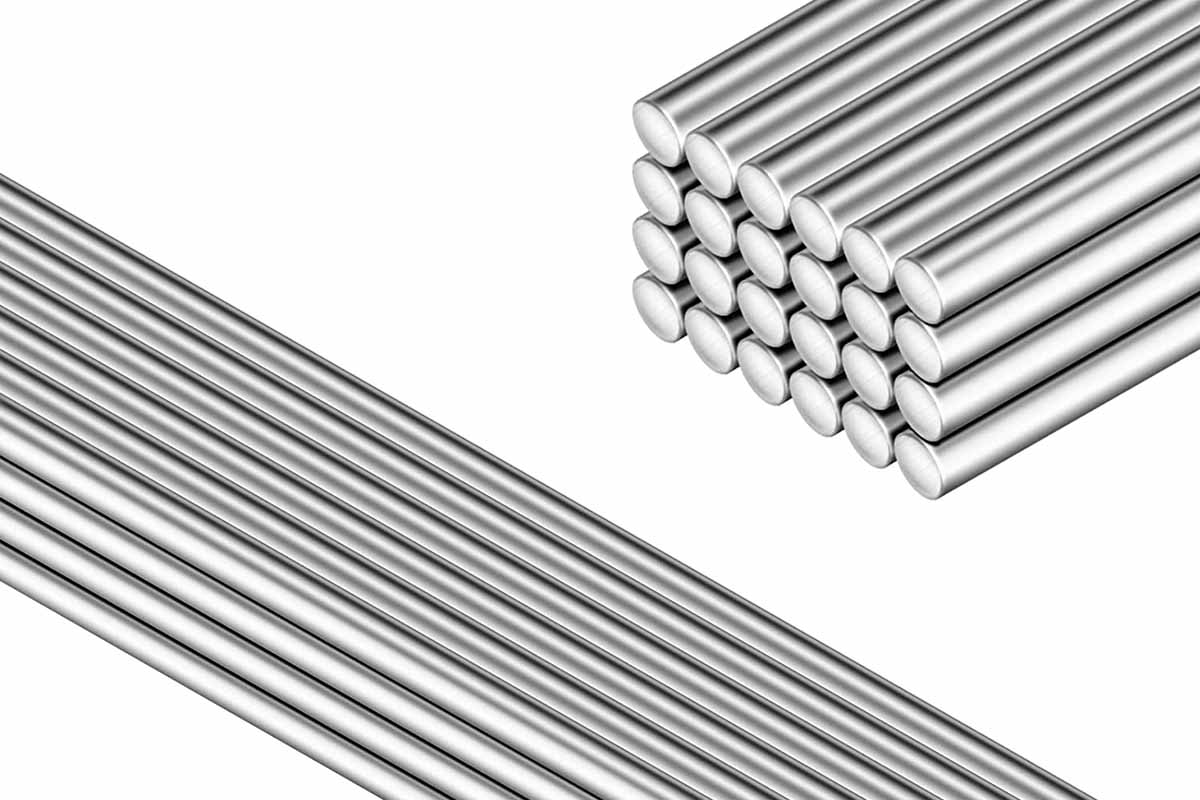

Wire spool, straight wire, coil wire, barrel

Features

5% magnesium content, strong versatility, high strength, and good color after welding.

Recommended soldering method

.

Gas Shield Argon 100%

Welding Position

All positions for butt welding except vertical downwards (PA,PF,PC,PE)

Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Al

5183

≤0.4

≤0.4

≤0.10

0.5-1.0

4.3-5.2

≤0.25

≤0.25

≤0.15

Remainder

5356

≤0.25

≤0.4

≤0.1

0.05-0.2

4.5-5.5

0.05-0.2

≤0.1

0.06-0.2

Remainder


Typical Features


Alloy

5183

5356

Melting range

1075-1180°F

1060-1175°F

Conductivity

16-19Ω·m/mm2

29%lACS(O)

27%lACS(H18)

Density

2.66g/mm2

2.66g/mm2

Corrosion resistance

A(Gen)A(SCC)

A(Gen)A(SCC)

Thermal expansion coefficient (20℃~300℃)

23.7×10¯⁶/K

23.7×10¯⁶/K

Thermal conductivity (20℃)

110-120W/m.k

110-150W/m.k


Application

1. 5183 aluminum alloy wire can be used for the welding of 5654 and 5083 aluminum plate, featuring excellent resistance to seawater corrosion and low temperature performance. The weld seam is white after anodizing, which provides a good color matching for the welded joint. It is used for welding of related aluminum alloys in ship structures, offshore platforms, cryogenic vessels, railway locomotives and automobile industries.

2. 5383 aluminum alloy wire is used for automotive aluminum alloy fuel tanks, doors, body, frame, stage equipment, aluminum alloy doors and windows, guardrails, aluminum shells, aluminum tanks, pressure vessels, aluminum alloy furniture, aluminum formwork, petrochemical silos, medical equipment, ships, yachts, transportation facilities, etc.

Base metal

Aluminum Sheet Properties

Joint Performance

Rm(MPa)

RP0.2(MPa)

A/%

Rm(MPa)

RP0.2(MPa)

A/%

6061-T6/T651

310

275

12

205

130

11

6063-T6

240

210

12

135

80

12

7005-T6/T63

370

315

12

315

205

10

7039-T64

445

380

13

310

180

12

5083-O

310

200

18

285

125

16

6082-T6

310

275

11

210

130

10

7039-T61

410

340

14

320

220

14
