5052 H32 and 5083O Aluminum in Boat Building

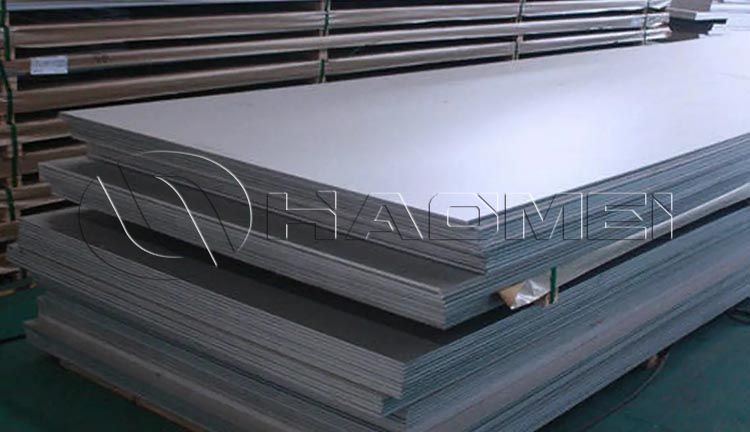

5052 Aluminum Sheet
5052 aluminum plate is a rust-resistant Al-Mg aluminum alloy. The H32 temper stands for "work-hardened and stabilized." This state provides an excellent balance between corrosion resistance and formability, making it particularly suitable for non-load-bearing or secondary load-bearing marine components exposed to water and humid environments. What are the advantages of 5052 h32 aluminum sheet properties?
Features
Superior Marine Corrosion Resistance: Containing approximately 2.5% magnesium, the resulting magnesium-aluminum alloy forms a dense oxide film in marine environments, effectively resisting corrosion from seawater and salt spray. Compared to ordinary steel, it requires less frequent rust-proofing paint, extending ship maintenance cycles by over 30%.
Excellent formability and weldability: The H32 temper exhibits a moderate degree of work hardening, ensuring adequate strength (tensile strength approximately 260 MPa) while also enabling easy bending, stamping, and other processes, making it suitable for the production of complex components. Furthermore, its welded joints exhibit minimal strength loss, eliminating the need for complex post-weld heat treatment, reducing production complexity.
Significant lightweighting advantages: With a density of only 2.68g/cm³, approximately one-third that of steel, replacing the same volume of steel with 5052 H32 can reduce component weight by 40%-50%, indirectly reducing fuel consumption and navigation resistance.
Applications
Deck cladding and cabin bulkheads: Ship decks are frequently exposed to seawater splashing and cabin interiors are prone to moisture. 5052 H32's corrosion resistance prevents rust and deformation, and its lightweight design reduces the overall deck load. Cabin bulkheads require frequent cutting and splicing, so its excellent formability improves assembly efficiency.
Side plating and storage bulkheads: Side plating doesn't directly bear external impact, but must resist corrosion from internal moisture. Storage bulkheads (such as fresh water tanks and store holds) require high material purity and corrosion resistance. 5052 H32 does not leach harmful substances and is less susceptible to cracking due to humidity fluctuations.
Ship superstructure components: Components such as the cab side window frames and railing bases require both aesthetics and corrosion resistance. 5052 H32, after surface treatment, exhibits a refined texture and resists fading and rusting even after long-term exposure to the marine environment.
5083 aluminum plate
5083 o aluminum belongs to the higher-strength Al-Mg aluminum alloy family. The "O state" represents the fully annealed state. While its strength is slightly lower than that of the work-hardened state, it has excellent ductility and superior weldability. Its overall strength exceeds that of 5052, making it suitable for ship load-bearing structures and external contact parts.
Advantages
Higher strength and impact resistance: The magnesium content has been increased to 4.0%-4.9%, resulting in a tensile strength of approximately 270 MPa and a yield strength of approximately 110 MPa. The alloy also exhibits excellent ductility in the annealed state (elongation ≥20%), making it highly resilient to wave impacts and shore collisions during navigation, while being less susceptible to brittle fracture.
Top-notch weldability: The O temper eliminates internal stresses in processing, making welding less prone to cracking. The weld joint strength can reach over 80% of the parent material—critical for ship structures requiring integral welding, reducing potential structural risks later in the process.
An "upgraded version" of seawater corrosion resistance: In addition to a dense oxide film, the high magnesium content also enhances the alloy's stress corrosion resistance in high-salt, high-humidity environments, making it particularly suitable for components exposed to seawater for extended periods.
Applications
Hull and bottom plating: As the ship's first barrier to direct contact with seawater, 5083 O's high strength protects against impacts with marine life and scrapes from reefs. Its corrosion resistance prevents leakage from seawater erosion on the bottom, while its lightweight design reduces the ship's draft.
Hull ribs and beams: These are the "skeleton" of the ship, supporting the entire hull weight and internal loads. 5083 O's strength and weldability ensure secure rib connections. Its annealed plasticity also buffers stress during load fluctuations, extending the life of the structure.
Lifeboats and small vessel hulls: Lifeboats have extremely high requirements for "lightweight + high strength". Hulls made of 5083 O are lightweight and easy to lift and navigate. It is also commonly used in the hulls of small fishing boats and yachts, reducing fuel consumption while being able to cope with complex offshore conditions.
