Boat Extrusions
What Haomei Alumium can offer
Haomei Aluminum has been devoted to provide one-stop purchase of marine grade aluminum products, covering aluminum sheet, aluminum welding wire, aluminum tread plate, stiffened panel, aluminum oblate, small aluminum boat extrusion.

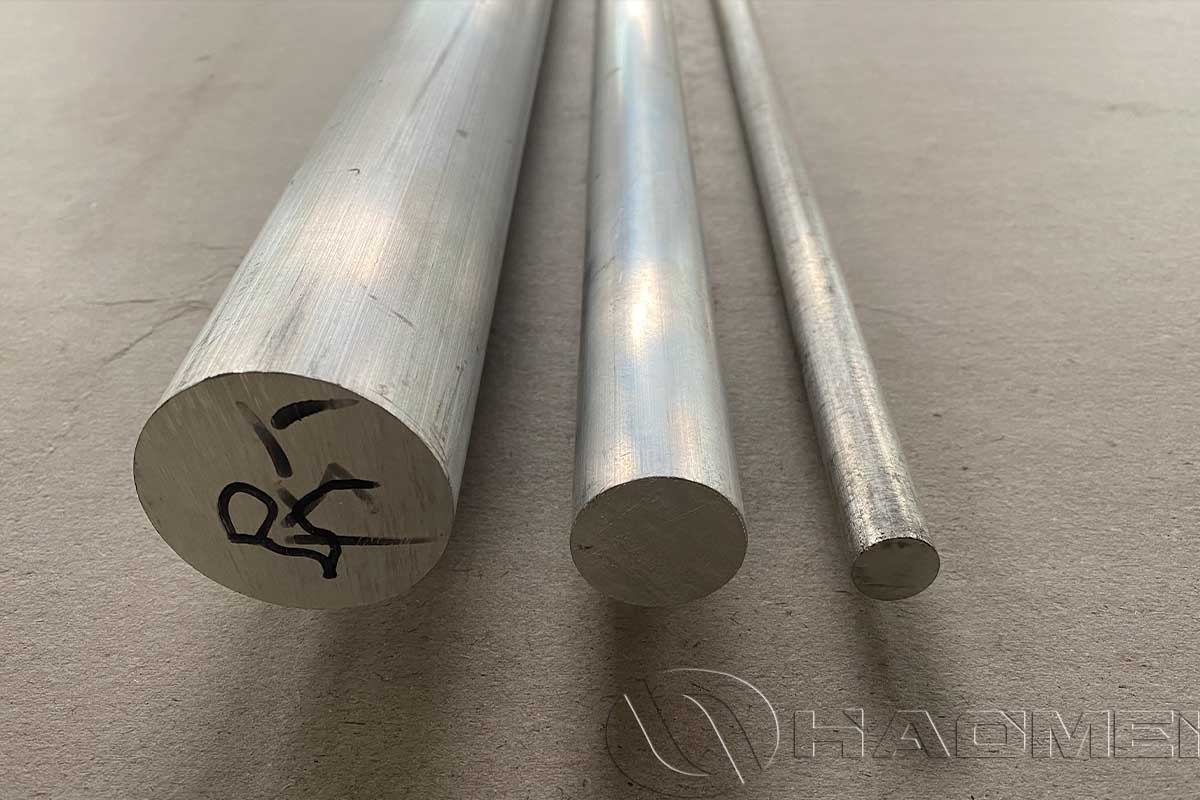

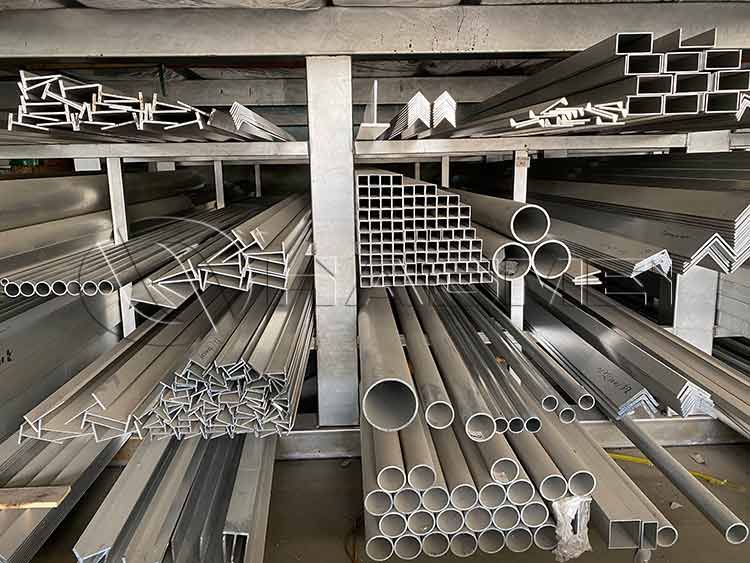

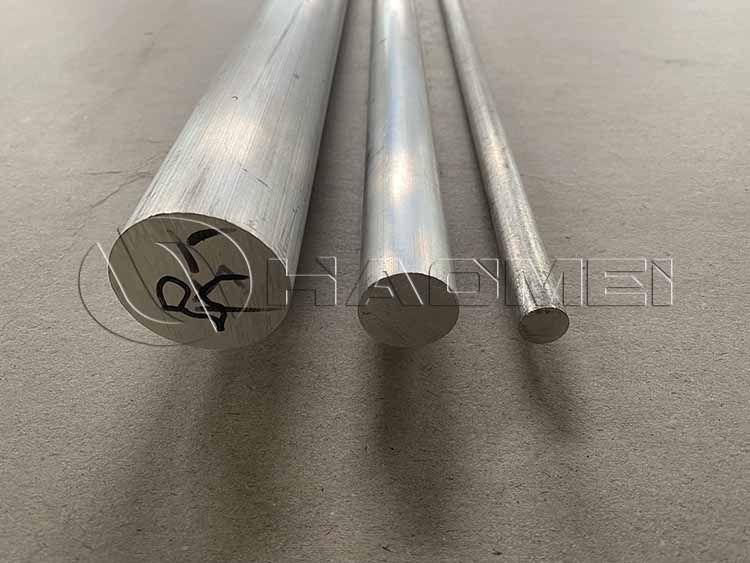

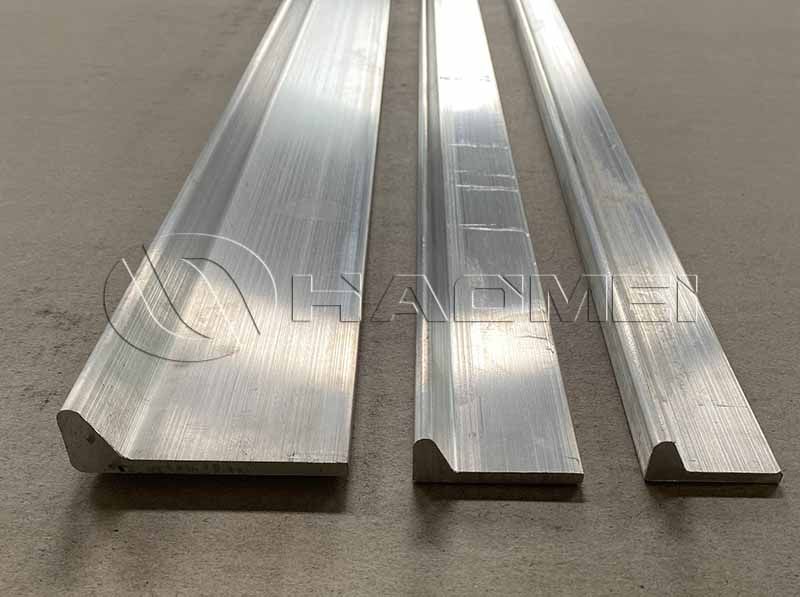

Our main aluminum boat extrusions have aluminum tube, flat aluminum, angular aluminum, aluminum rod, aluminum trough, aluminum square tube, aluminium t profile, i type aluminum,aluminium gunnel extrusions.

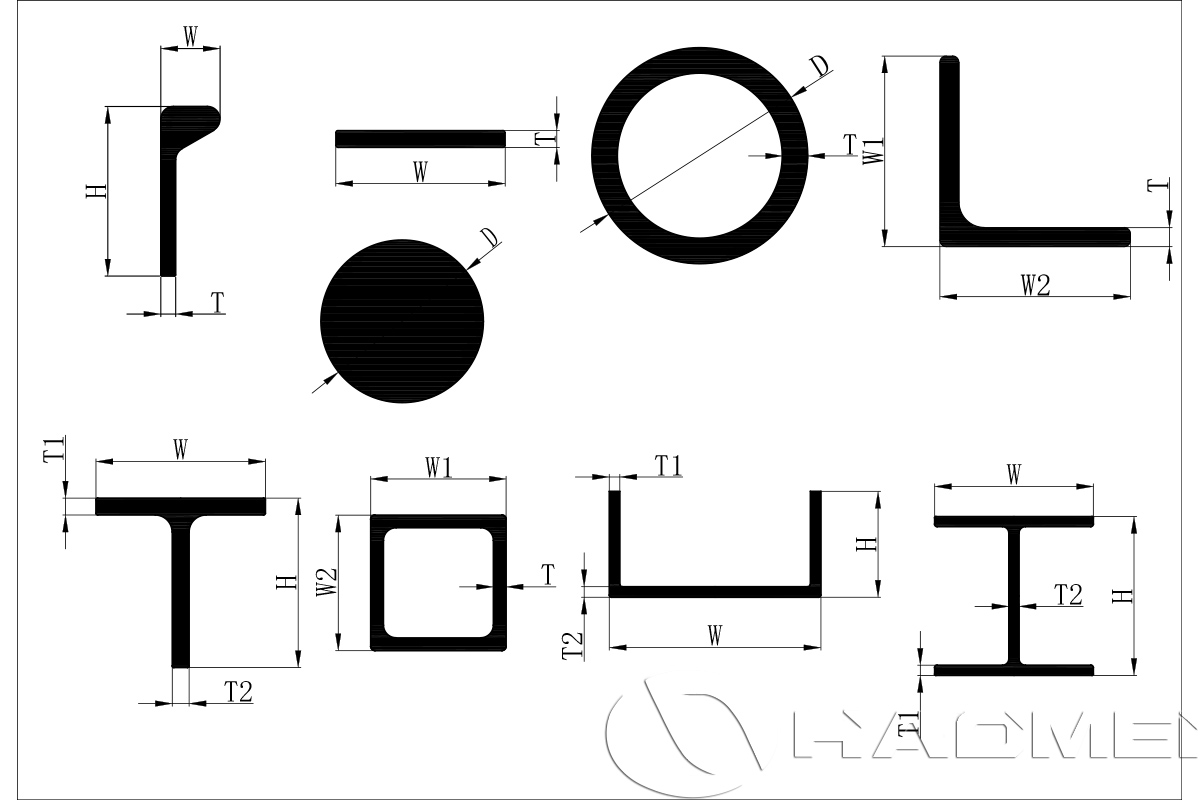

Specification

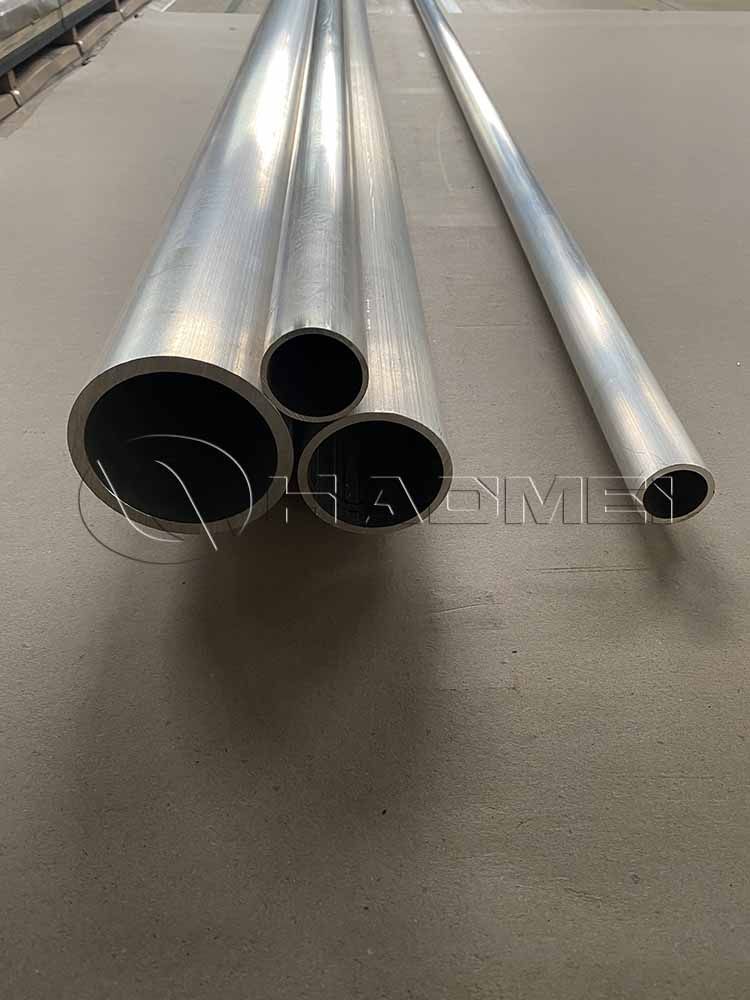

Aluminum pipe
D (mm) | 22 | 35 | 45 | 50 | 60 | 70 | 80 | 108 | 120 | 130 |
T(mm) | 3 | 5 | 4 | 4 | 3 | 6 | 5 | 8 | 5 | 10 |

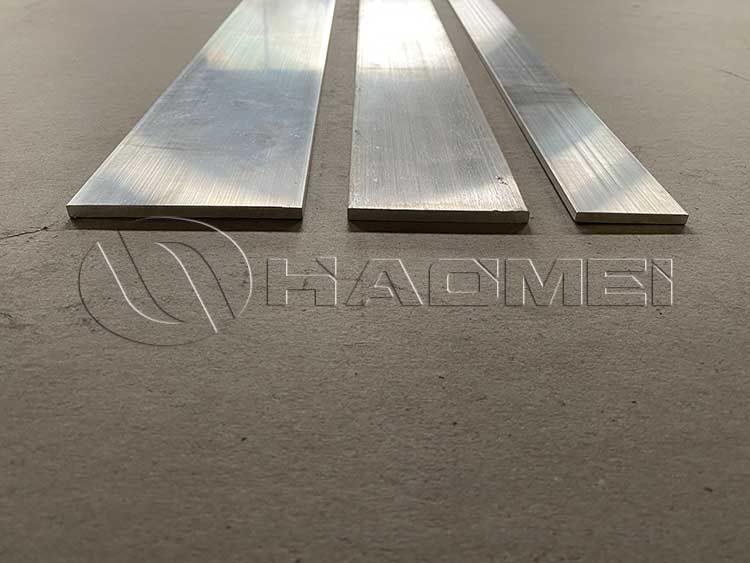

Aluminum flat stock
D (mm) | 40 | 50 | 60 | 80 | 100 | 120 | 130 | 150 | 180 | 250 |
T(mm) | 4 | 5 | 6 | 8 | 10 | 5 | 12 | 14 | 8 | 10 |

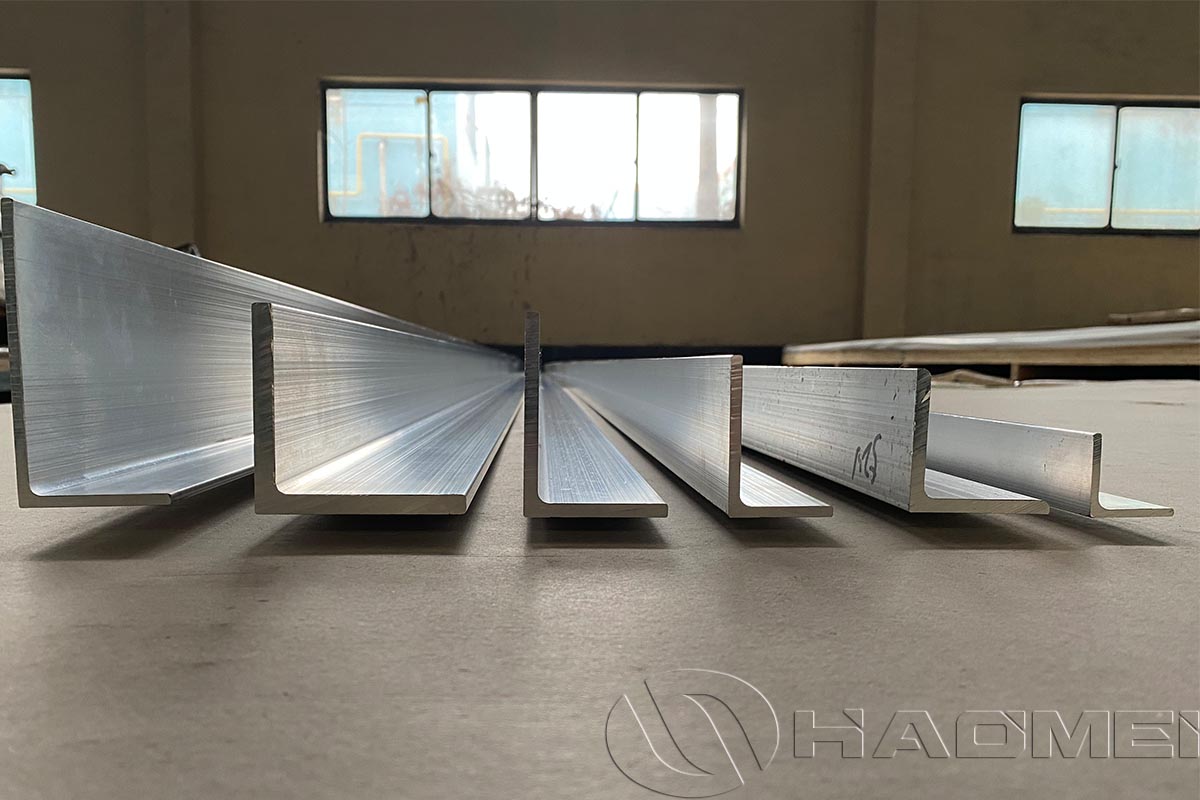

Angular Aluminum
W1(mm) | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 100 | 185 |
W2(mm) | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 50 | 100 | 50 |
T(mm) | 3 | 3 | 4 | 5 | 6 | 7 | 8 | 5 | 10 | 7 |
Aluminum T profile
H(mm) | 40 | 50 | 50 | 60 | 45 | 80 | 50 | 80 | 50 | 80 |
W(mm) | 40 | 50 | 60 | 70 | 90 | 100 | 120 | 120 | 140 | 150 |
T1(mm) | 4 | 4 | 6 | 5 | 6 | 8 | 6.5 | 8 | 7.5 | 8 |
T2(mm) | 4 | 4 | 4 | 4 | 4 | 6 | 6.5 | 6 | 7.5 | 8 |

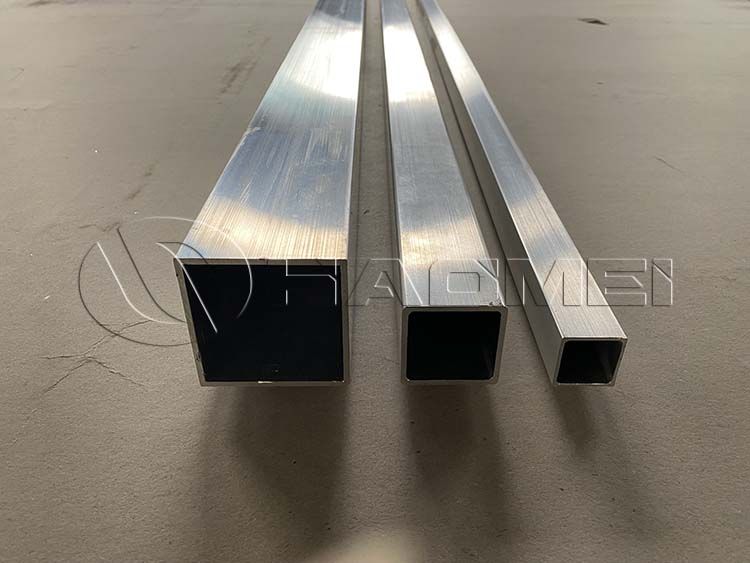

Square tube
W1(mm) | 25 | 30 | 40 | 50 | 60 | 75 | 80 | 100 | 100 | 100 |
W2(mm) | 25 | 30 | 40 | 50 | 40 | 75 | 40 | 100 | 100 | 50 |
T(mm) | 2 | 2 | 3 | 3 | 4 | 6 | 4 | 3 | 6 | 5 |
I-type aluminum
H(mm) | 125 | 80 | 80 | 100 | 76.2 | 50 | 80 | 100 | 74 | 100 |
W(mm) | 125 | 130 | 176 | 270 | 101.6 | 110 | 140 | 200 | 126 | 270 |
T1(mm) | 8 | 6 | 8 | 10 | 7.9 | 10 | 6 | 7 | 5 | 8 |
T2(mm) | 8 | 5 | 5 | 6 | 6.4 | 4 | 4 | 7 | 5 | 6 |

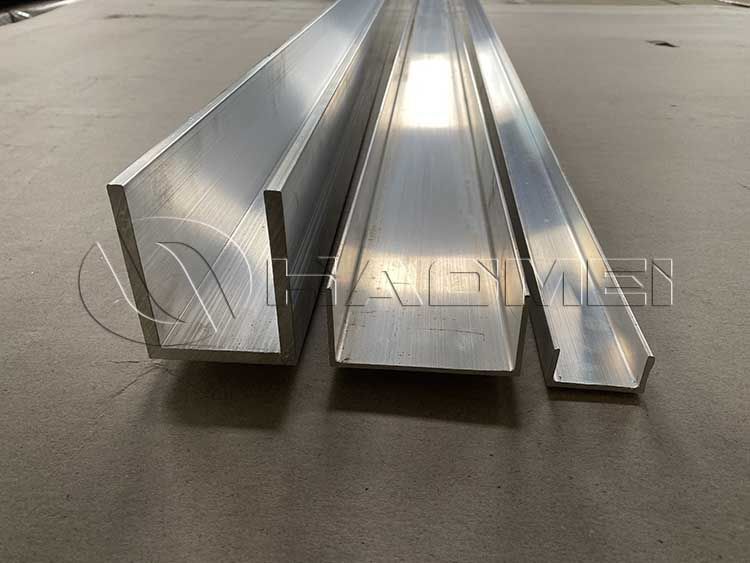

Aluminum Trough
W(mm) | 25 | 50 | 50 | 50 | 80 | 100 | 100 | 100 | 152.4 | 203.2 |
H(mm) | 25 | 25 | 40 | 50 | 100 | 25 | 50 | 50 | 76.2 | 76.2 |
T1(mm) | 3 | 3 | 4 | 5 | 8 | 3 | 3 | 5 | 9.5 | 12.7 |
T2(mm) | 3 | 3 | 4 | 5 | 8 | 3 | 3 | 5 | 6.4 | 9.5 |
Why choose Haomei Aluminum
1. We have complete specifications of various marine aluminum profiles for the shipbuilding, saving your troubles from searching from different suppliers.
2. All of our products have got the certification of multiple classification societies like CCS, DNV, BV, LR,ABS,etc.

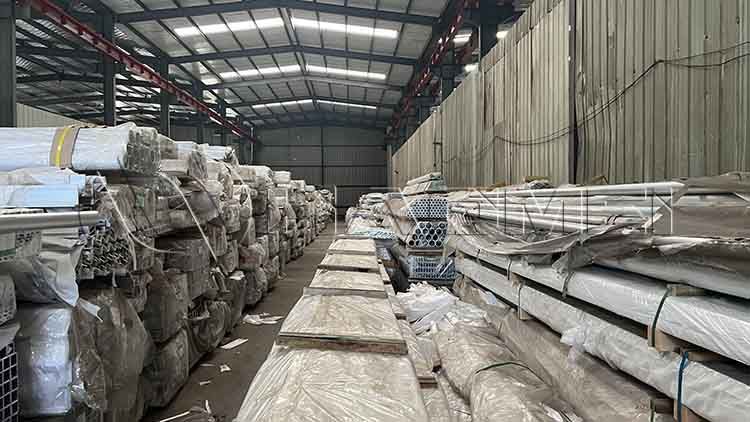

Please download the file to get a knowledge of our aluminum extrusion stock.
