The Function of Aluminium Pipe Connectors in Boat Building
In the field of marine engineering, lightweight and corrosion resistance are the core requirements for pipeline system design. Aluminum alloy pipes are ideal for ship fuel, seawater cooling, compressed air and other systems due to their low density, high strength and seawater corrosion resistance. As the core component of pipeline steering, 90-degree aluminum elbows have multiple functions such as connection, vibration reduction and space optimization in complex ship working conditions.
The performance of aluminum alloy pipes depends on the precise matching of aluminium pipe connectors. Aluminum elbows need to meet the following requirements:
High-precision tolerance: The matching error with the pipe interface must be controlled within ±0.1mm to ensure the sealing of welding or mechanical connection.
Anti-fatigue design: In a vibration or pressure fluctuation environment, the elbow needs to optimize the structure through finite element analysis to extend the service life.
Surface treatment: Anodizing or spraying process can enhance the wear resistance and weather resistance of the elbow.

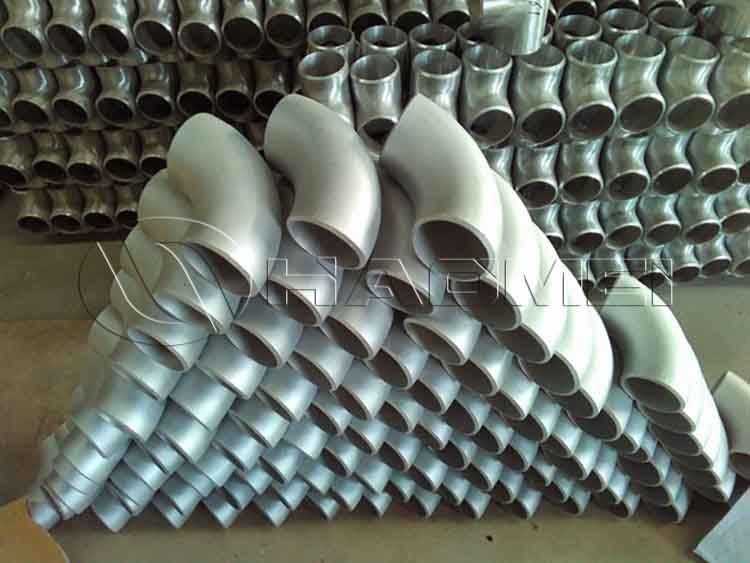

Aluminum elbows
Aluminum elbows can be divided into 45°, 90°, 180° and other types according to the angle. Among them, 90° elbows are widely used in the following scenarios due to the need for right-angle steering:
Fluid steering control: Reduce turbulence and pressure loss through the smooth inner wall curvature (for example, in chemical pipelines, the pressure drop of a 90° elbow is only 1/3 of that of a welded right-angle elbow).
Spatial layout optimization: Change the direction of the pipeline in narrow areas, such as ship cabins and high-rise building riser systems.
Earthquake resistance and stress release: The flexible elbow design can absorb the stress caused by thermal expansion and contraction or mechanical vibration to avoid pipeline rupture.
Typical application scenarios of 90-degree aluminum elbows in ships
Seawater cooling system
Aluminum alloy elbows are naturally resistant to seawater corrosion and have a service life of more than 20 years (carbon steel elbows are only 5-8 years). The use of integral casting elbows can eliminate welding defects and avoid the risk of weld corrosion.
LNG ship cryogenic pipeline
It requires that the material maintains toughness in an ultra-low temperature environment of -162℃. 5083-H321 aluminum alloy still maintains a tensile strength of ≥200MPa at -196℃. The aluminium 90 degree elbow and pipe are vacuum brazed, and the weld has no pore defects to ensure low-temperature sealing.
Industry standards and certifications
Aluminum elbows for ships must pass the following strict certifications:
Classification society certification: DNV GL, LR, ABS and other organizations conduct comprehensive inspections of materials, manufacturing processes and performance.
ISO 16923: Ships and offshore technology - Standard for aluminum and aluminum alloy piping systems.
IMO MSC.337(91): International Maritime Organization's environmental requirements for ship ballast water system materials.
