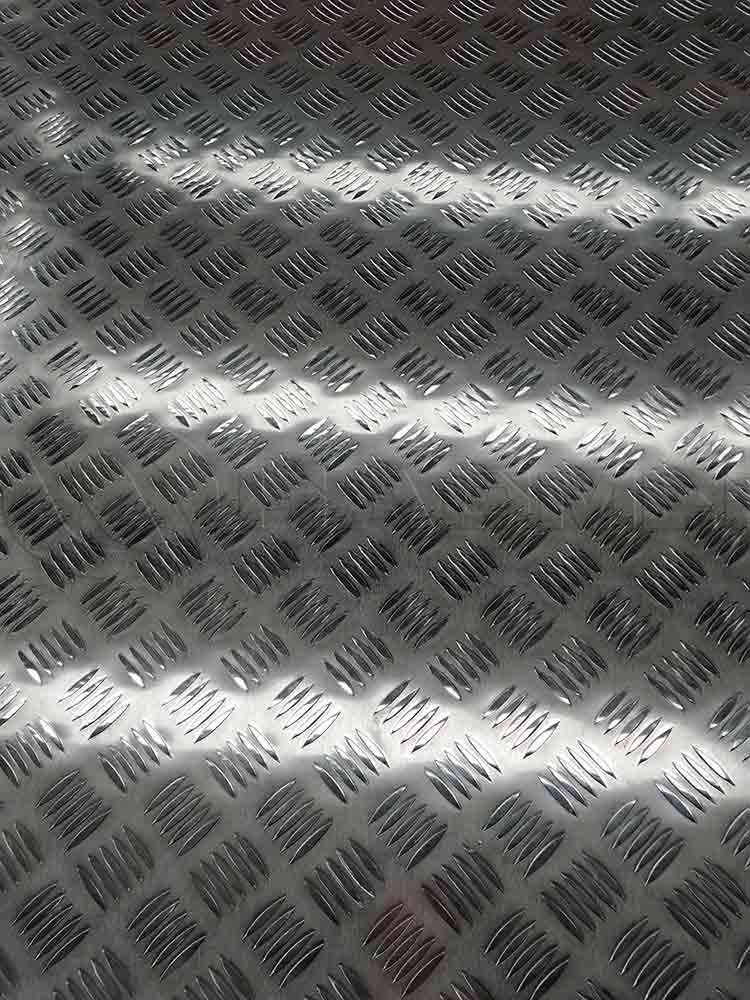

Marine Aluminum Checker Plate for Boat Building
The marine grade aluminum checker plate is an aluminum checker plate with special processing to meet ship and maritime purposes. 3/5/6 series have been widely used in maritime, shipbuilding and other fields.
5000 series aluminum tread sheets, represented by 5052 or 5083, have good corrosion resistance, high hardness, and good rust resistance, and are widely used in the shipbuilding industry. This kind of aluminum plate has high hardness and good load-bearing capacity.
5052 patterned aluminum plates can be divided into many types according to pattern styles. At present, the embossed aluminum plates we mainly produce include one bar, two bar, three bar, five bar, diamond, etc. Due to the special physical structure and chemical properties of aluminum diamond plate, embossed aluminum plates are mostly used on building floors, internal floors of ships, and car doorsteps, etc., to play an anti-slip role.
5086 aluminum diamond plate has the characteristics of corrosion resistance, wear resistance, pressure resistance, etc., so it is widely used in some occasions that require high material performance, such as ships, vehicles, aerospace and other fields.
According to actual needs, choose the appropriate size of 5086 pattern aluminum plate. The common thicknesses are 2mm, 3mm, 4mm, etc., and there are also different width and length options. The appropriate specifications and sizes should be selected based on comprehensive consideration of the specific use occasion and load-bearing requirements.
The surface treatment of 5086 aluminum checker plate can be selected from different methods such as anodizing and spraying. Anodizing can increase the corrosion resistance and hardness of the aluminum plate, and spraying can provide more decorative options.
5083 aluminum diamond plate for sale has good corrosion resistance and strength and is widely used in ship hulls, ship decks, ship hatches, ship stairs, etc. It can effectively resist seawater corrosion and has excellent reliability. It has the follow features:
1. High strength: 5083 alloy aluminum plate has excellent strength, mainly due to the magnesium element in it. This makes it advantageous in some applications that require high-strength materials.
2. Strong corrosion resistance: 5083 alloy aluminum plate has good corrosion resistance and can be used in humid environments for a long time without rust. It is suitable for highly corrosive occasions such as marine environments.
3. Good processability: 5083 plate has good plasticity and is easy to be processed into various shapes and sizes, and can be used for cutting, punching, bending and other processing processes.
4. Easy to weld: 5083 aluminum sheets have good welding performance and can be connected through various common welding methods. They are widely used in ships, automobiles and other fields.
5. Low density: 5083 alloy has a lower density and is lighter in weight than other alloy materials.
